“P” Style Bucket Elevators

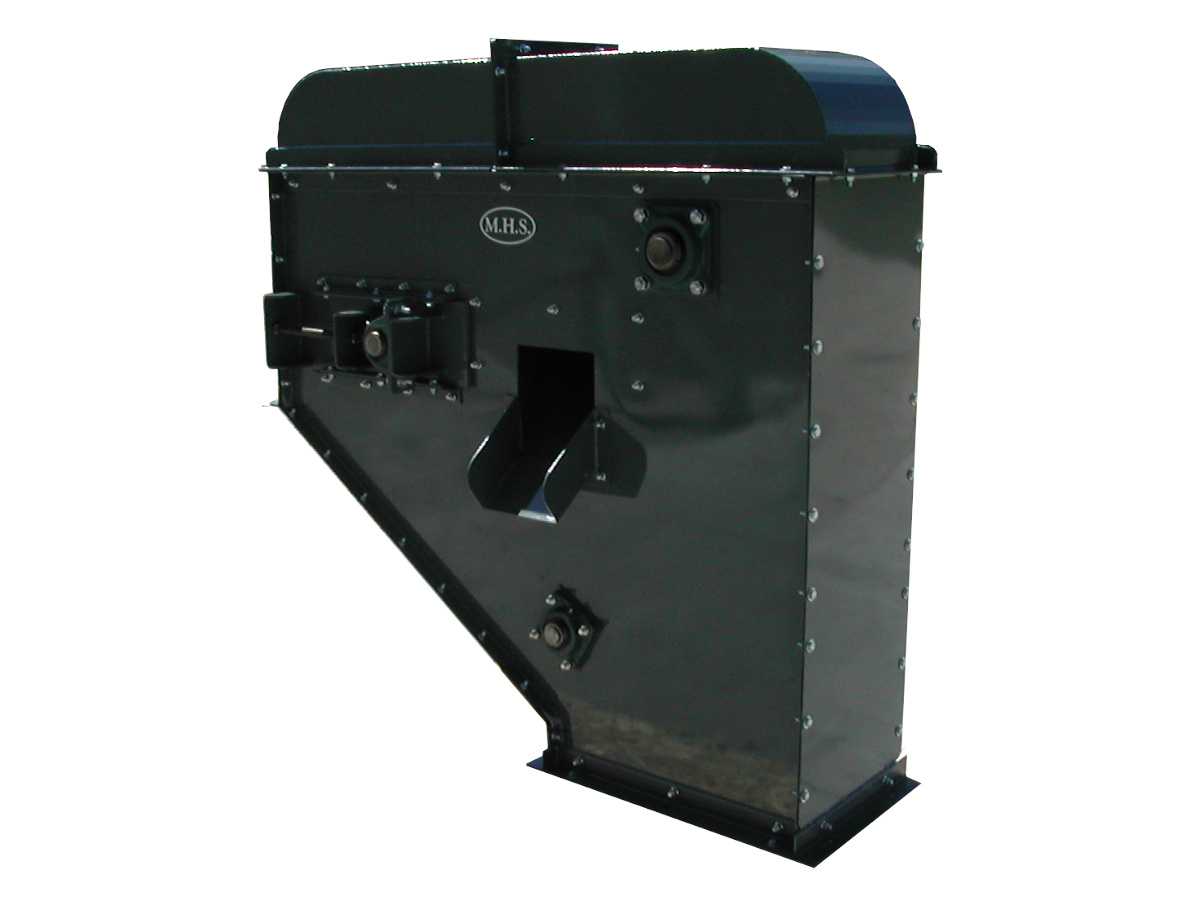

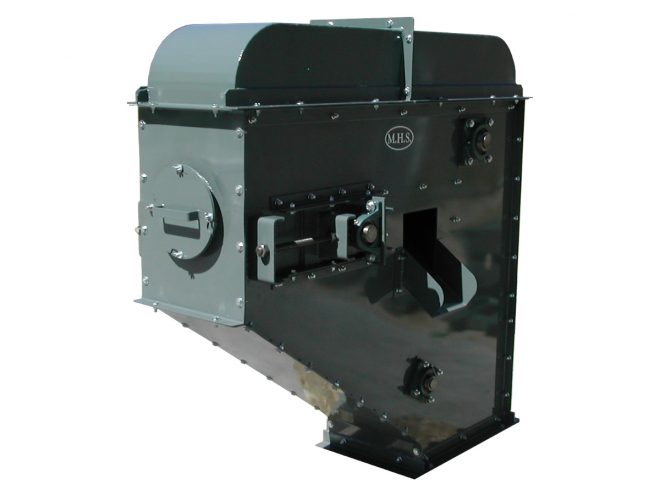

Our “P” Style Bucket Elevator is a second gentle handling option with the discharge chute in the center of the head section.

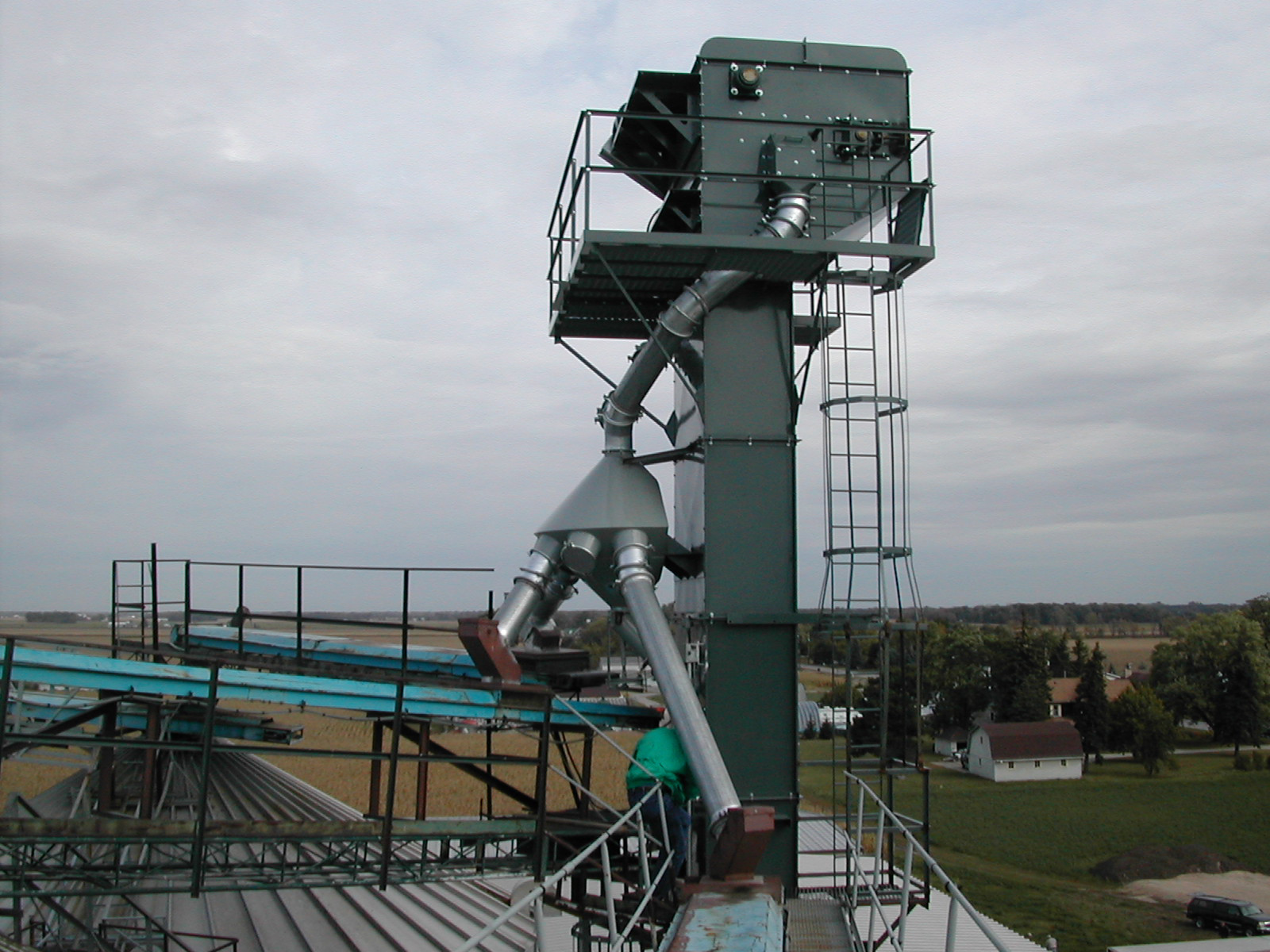

We offer a full line of “P” Legs with capacities that range from 250 to 5,000 bushels per hour. We design our elevators with assembly in mind saving you time and money. With over 35 years of combined field and manufacturing experience we customize our equipment to fit your specifications. Our platforms are built to OSHA specs and provide considerably more room to work and the security of our rigid frame construction. Our elevators are manufactured in the USA with continuous welded construction, not bolt together or lock formed.

Features

  • Welded construction for dust and weather proof seals
  • Heavy duty ball bearings throughout
  • Quick clean-out pull slide with removable drawer
  • 10 feet of cottered chain for ease of chain maintenance
  • Factory installed drive
  • Customized discharge chutes with optional liner packages and inspection ports
  • Timed sprockets with keyway and double set screws standard with optional tapered bushed style hubs
Model Bucket Size Bucket Spacing Chain speed FPM Bu./hr. ft./hr. Sprocket Size
P7x5 7×5 6″ 75 250 311 47 Tooth
P9x6 9×6 6″ 75 500 622 47 Tooth
P12x6 12×6 6″ 75 700 875 47 Tooth
P16x8 16×8 10″ 75 900 1120 40 Tooth
P18x8 18×8 10″ 75 1000 1244 40 Tooth
P24x10 24×10 10″ 75 2500 3110 40 Tooth
P48x10 (2) 24×10 10″ 75 5000 6220 40 Tooth

P Leg Insert
