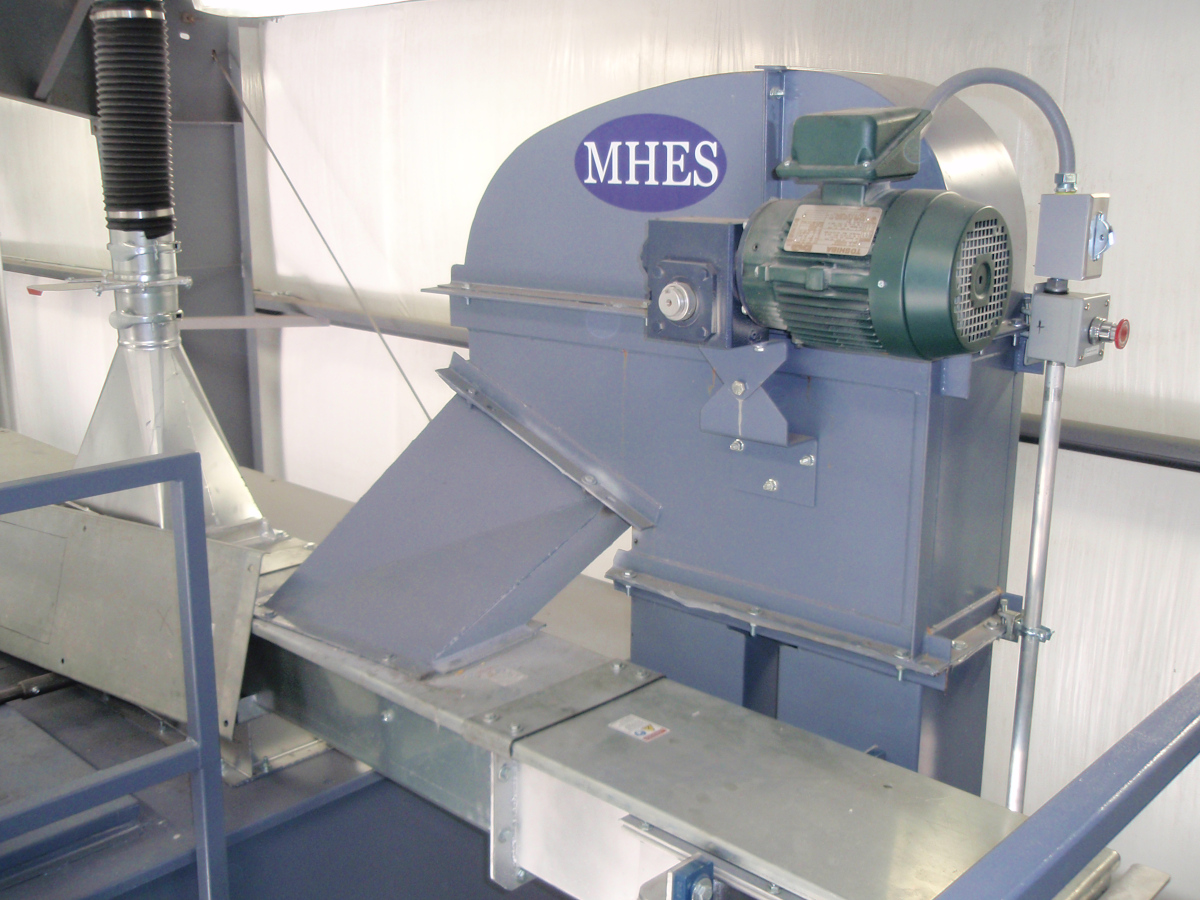

We offer a full line of Gentle Handling Bucket Elevators with capacities that range from 150 to 3,000 bushels per hour. Our Gentle Handling line uses low profile buckets on short spacing. This along with our tapered inlet encourages product to go directly into the cup. We also use a continuous discharge pattern instead of spiratic. Our head sections are manufactured with an elongated design to minimized contact. Our goal is to get 100% of the product in the bucket and discharge at the slowest possible speed to maximize the gentle handling ability of the leg.
Features
- Compact right angle worm gear drive
- Available with shaft mount reducer drive
- Factory Installed drives

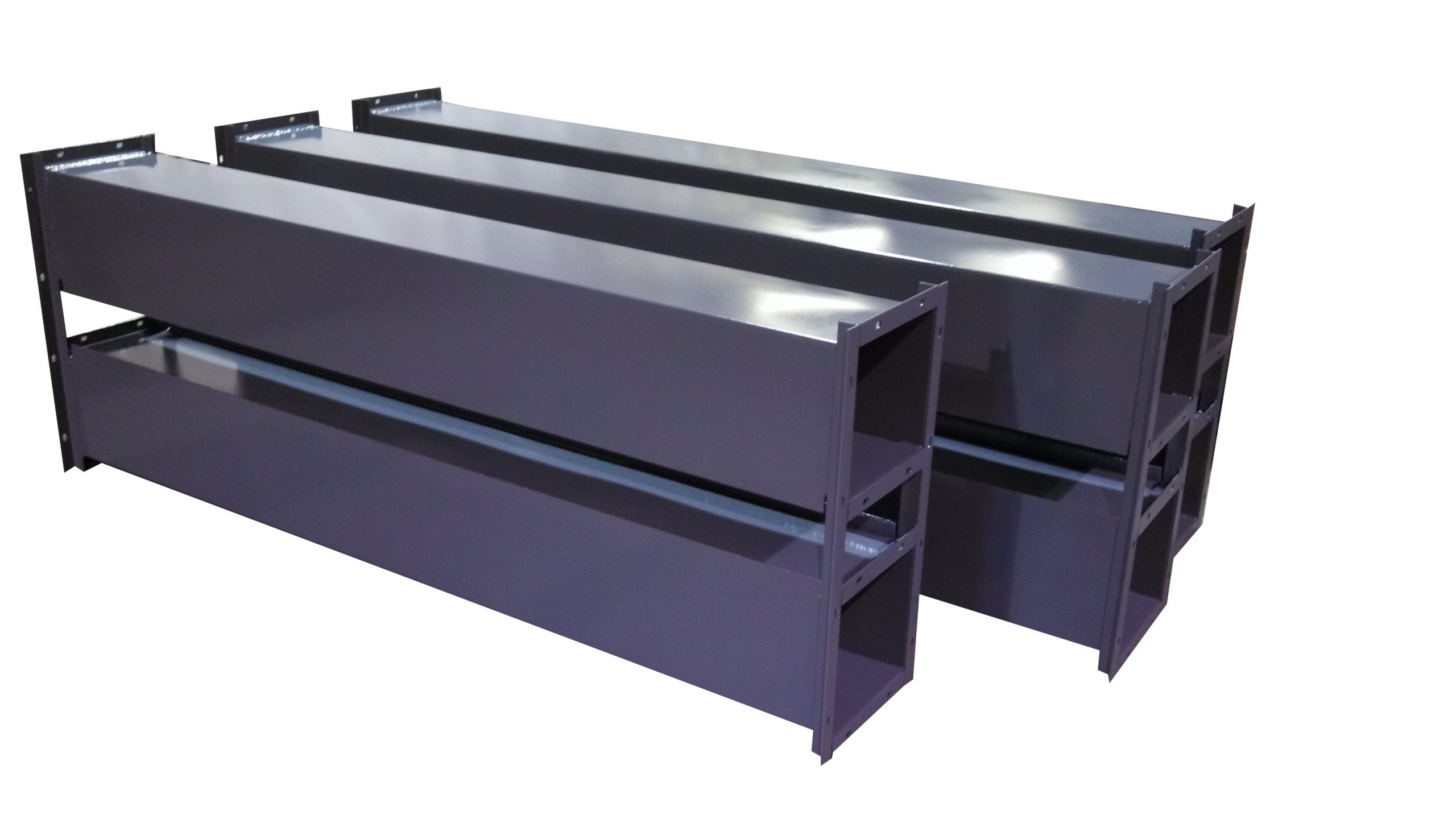

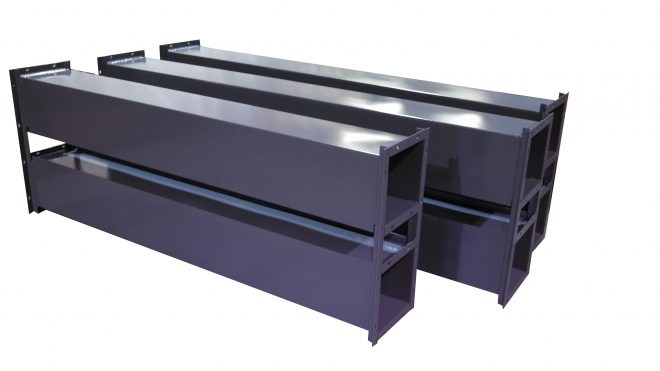

- Double trunk all welded steel legging
- Slow speed centrifugal discharge

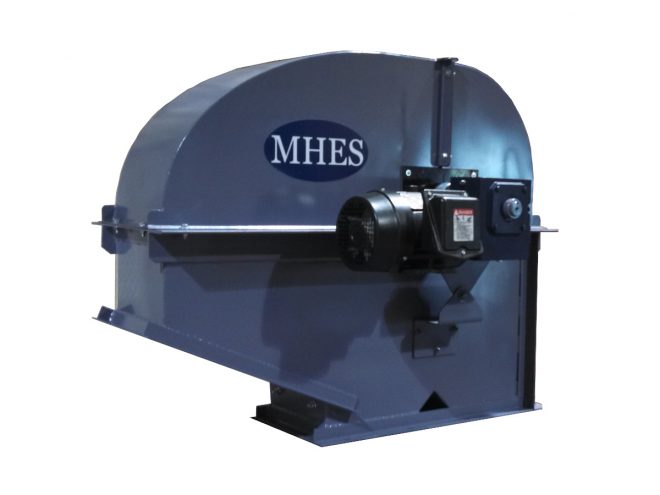

- Special head design patterned around grain flow to minimize damage

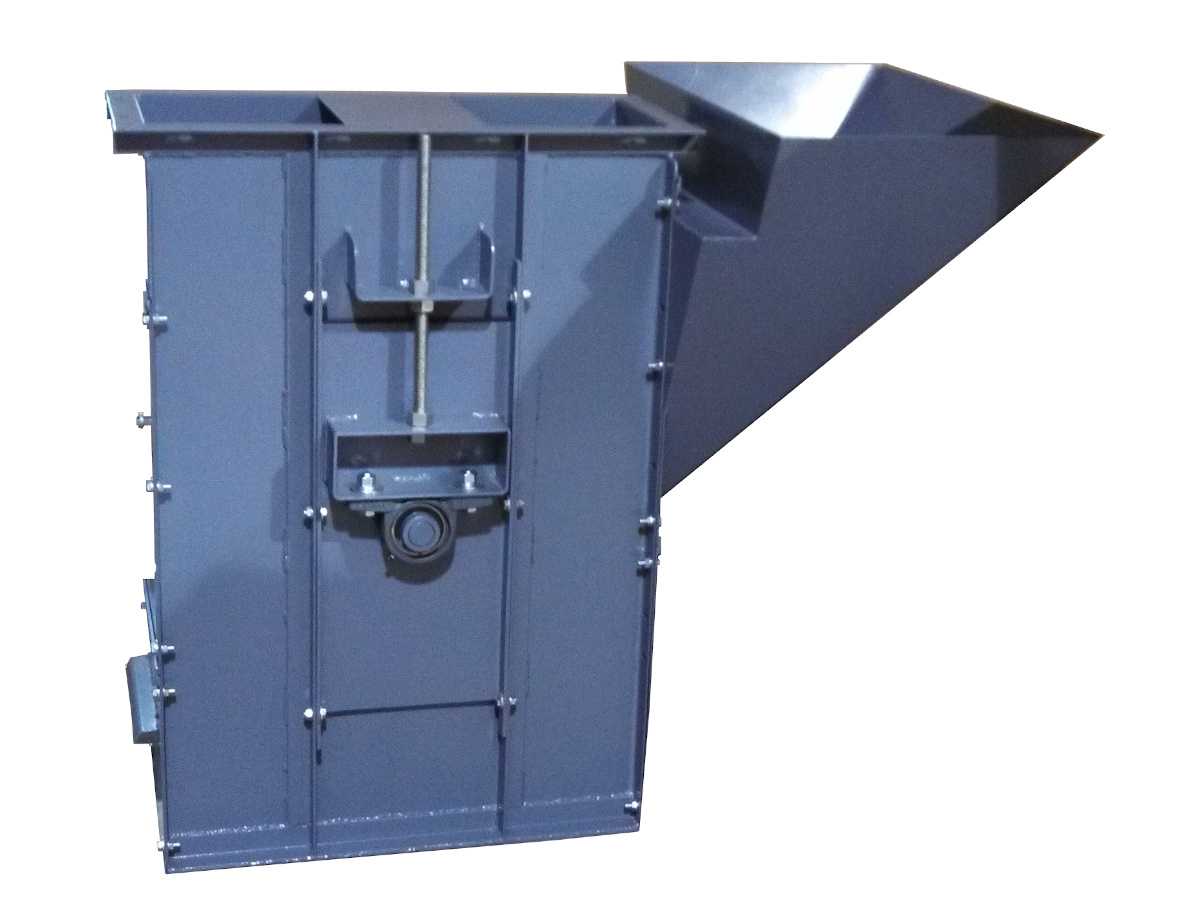

- Tapered inlet hopper to encourage product to go directly into the cup

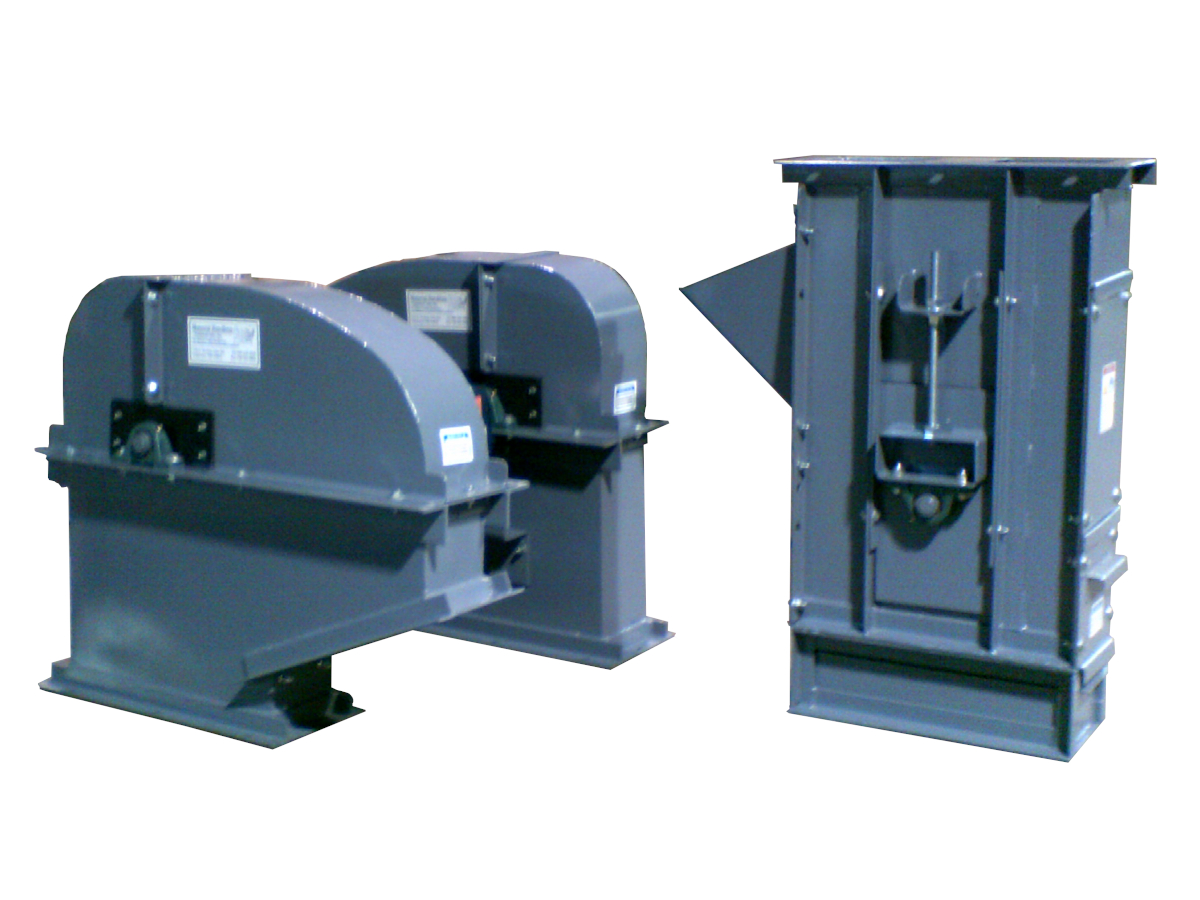

- External mounted pillow block head & boot bearings
- Wing grain saver type boot pulley
- Adjustable discharge deflector plate allowing to fine tune leg performance
- Low profile poly buckets closely spaced for optimum cup fill
- Conservative capacities based on water level cup fill
- Continuous discharge design
- Ambidextrous head discharge transition
- Painted, powder coated or stainless steel construction available
- Galvanized take up assemblies w/UHMW seal
