High Flight Commercial Drag Chain Conveyors

We offer a full line of high flight Commercial Drag Chain Conveyors that with bend section Incline angles from 5 to 50 degrees to fit your specific application.

Standard Features Include:

Heavy duty 81XH conveyor chain
1/2″ thick White UHMW flights
External Mounted pillow block head and boot shaft bearings
UHMW shaft seals

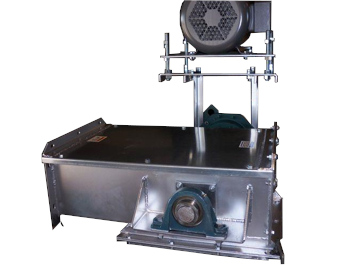

Factory installed drives
Optional AR (Abrasive Resistant) steel liners available

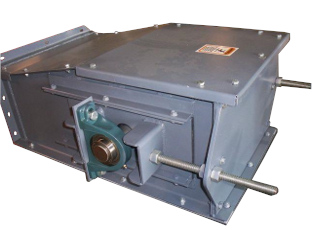

Zinc plated ACME threaded chain take-ups
Optional flame cut / hardened split sprockets for ease of maintenance
Manufactured utilizing CNC technology, jigs, and fixtures
Incline angles from 5 to 50 degrees

Optional Features

• Split Sprockets
• Variable speed drive
• (2) piece drive over dump grating primed & painted
• Head take up assembly with Galvanized ACME threaded rod
• AR (Abrasion Resistant) steel liners

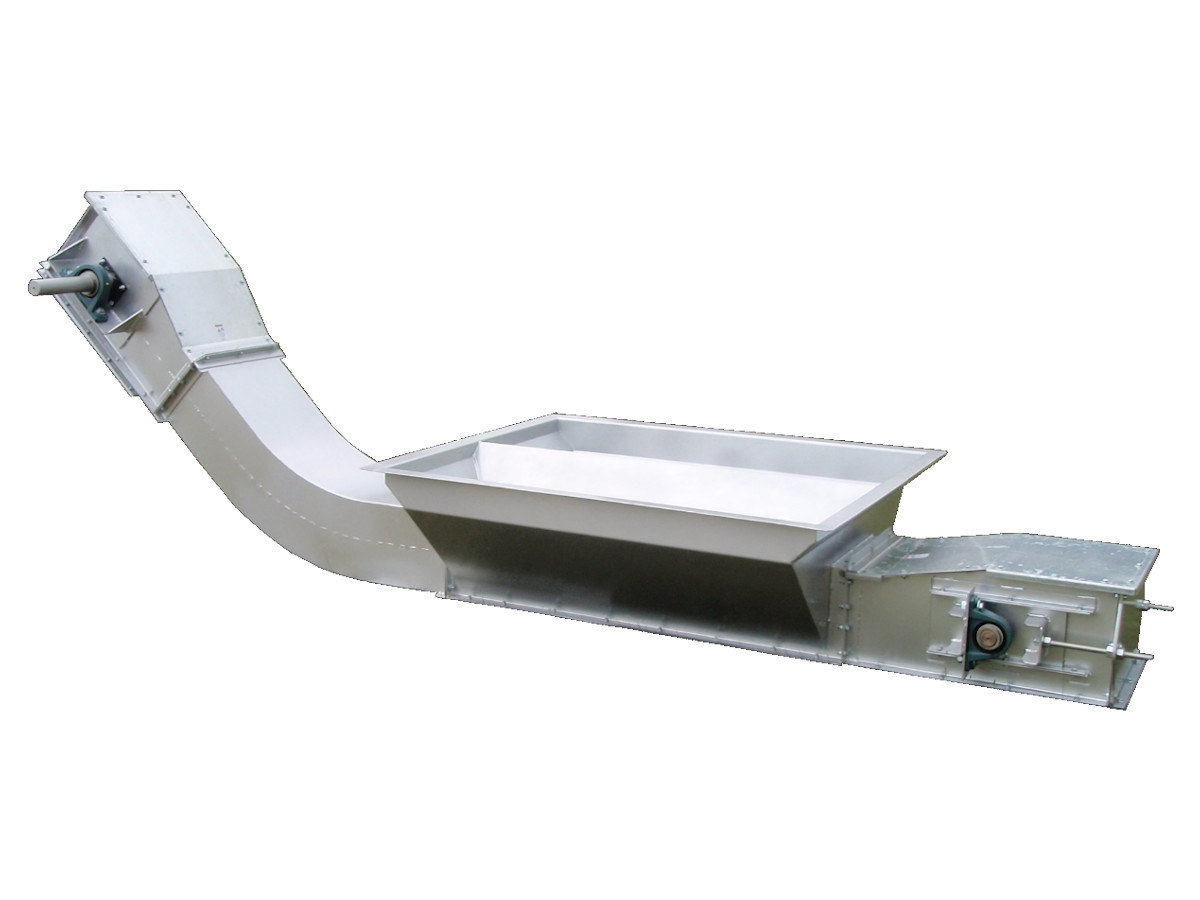

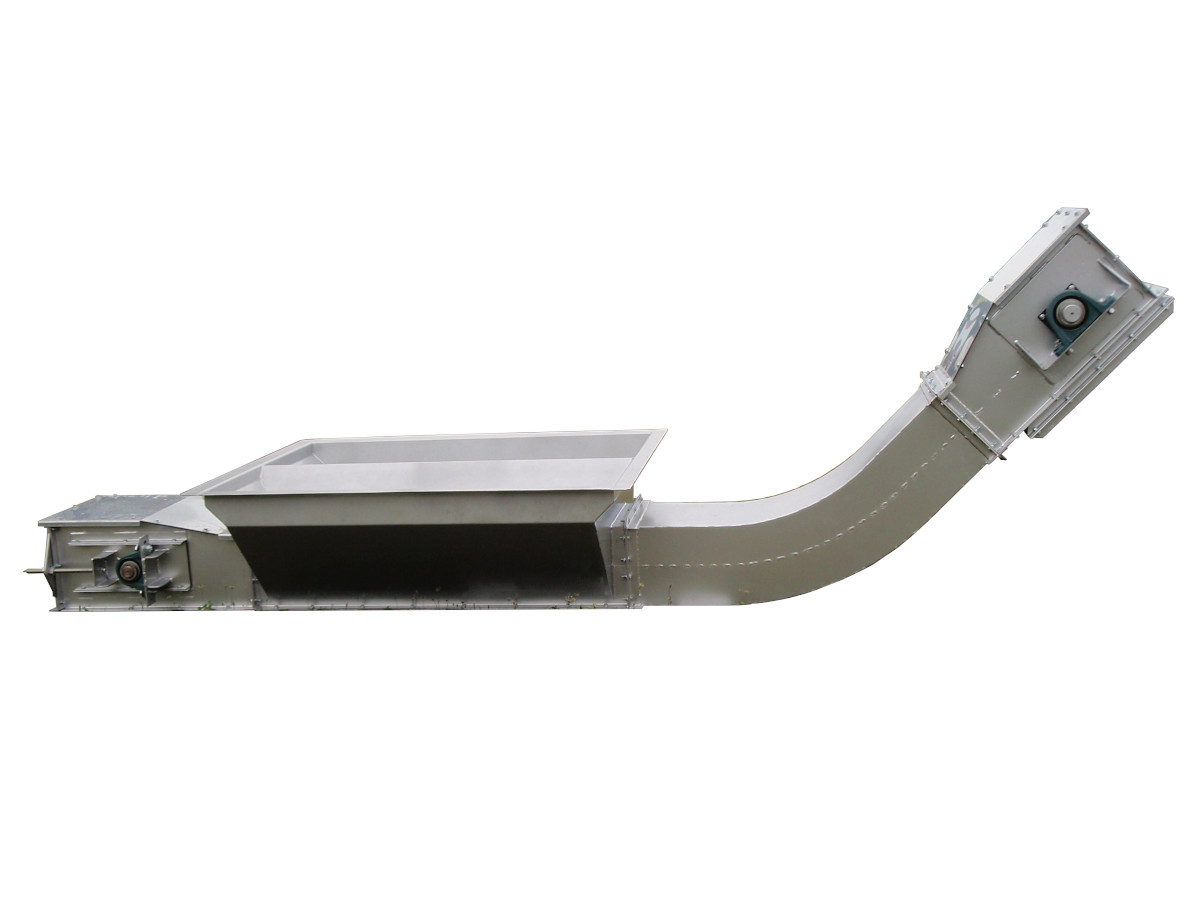

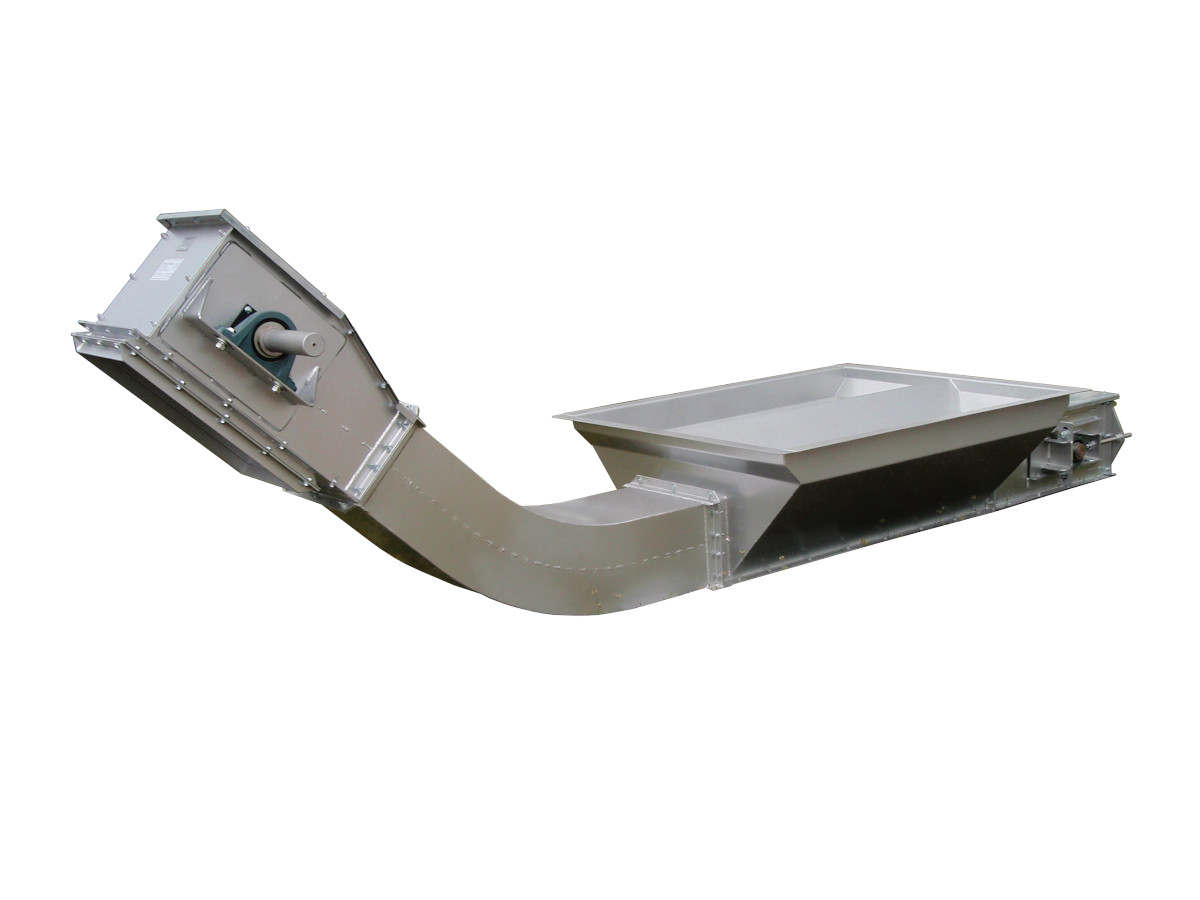

• 4’ x 10’ or 5’ x 10’ drive over bypass dump hoppers for pit conveyors
• Direct top inlets
• Factory installed drive and/or flights

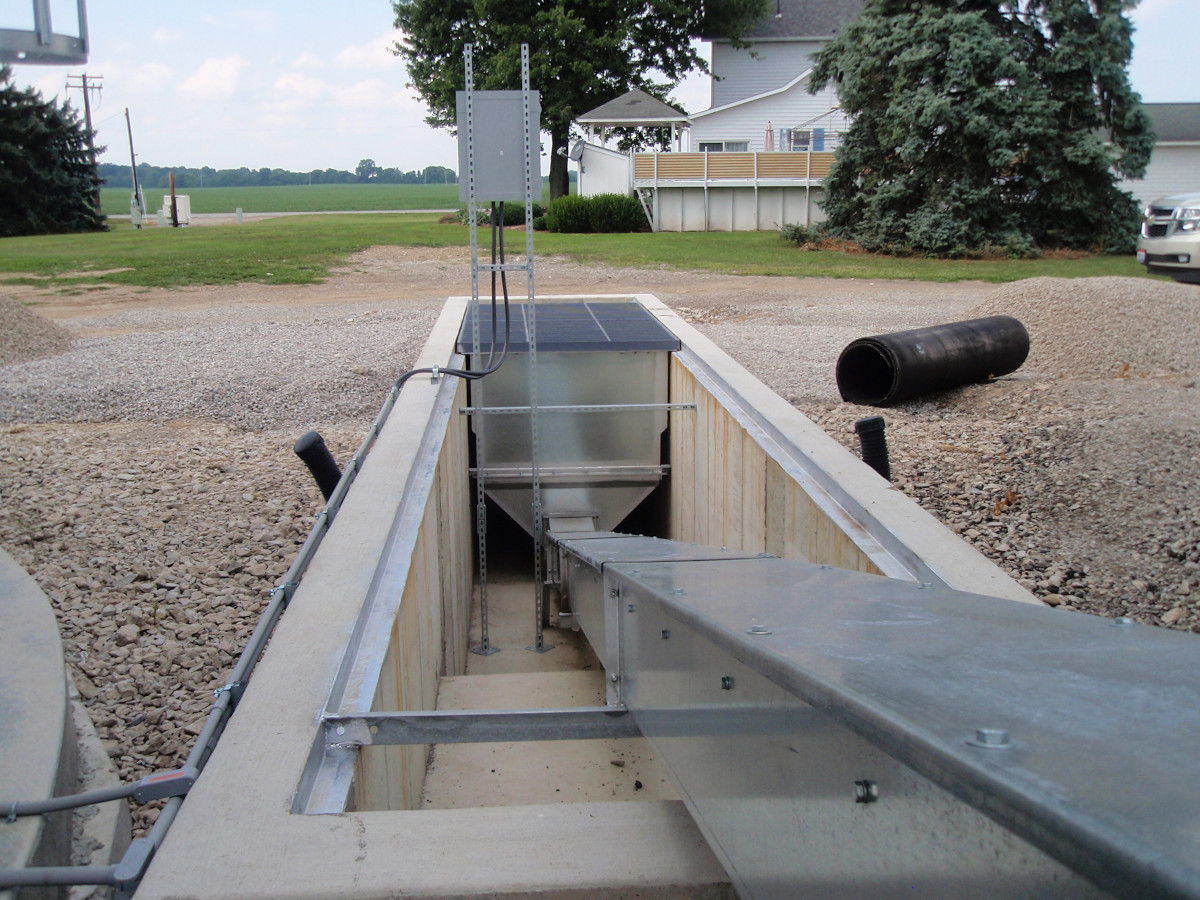

• Drive over dump hopper extensions for pit conveyors

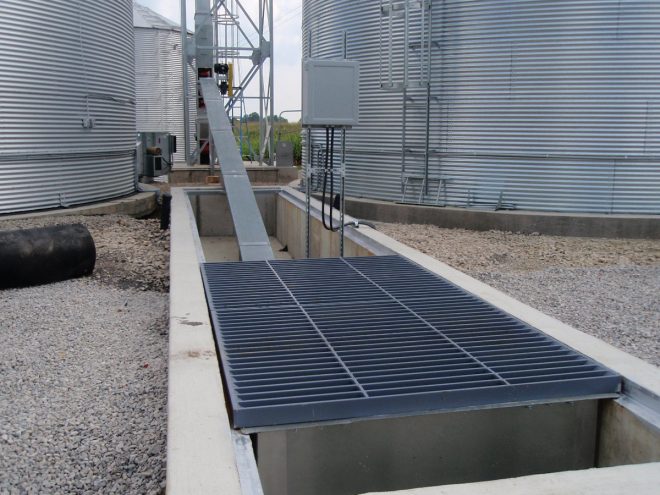

• Heavy, rubber pit grate cover for pit conveyors

High Flight “I”, “L”, & “S” Conveyor Series
		Chain Operating Speed in Feet per minute
W x H	Capacity	75	100	125	150
	bushels / hour	904	1,205	1,506	1,808
6 x 12	cubic ft / hour	1,130	1,506	1,883	2,260
	cwt / hour	407	542	678	814
	bushels / hour	1,356	1,808	2,260	2,712
9 x 12	cubic ft / hour	1,695	2,260	2,825	3,390
	cwt / hour	610	814	1,017	1,220
	bushels / hour	1,959	2,612	3,265	3,918
13 x 12	cubic ft / hour	2,449	3,265	4,081	4,898
	cwt / hour	882	1,175	1,469	1,763
	bushels / hour	2,561	3,415	4,269	5,123
17 x 12	cubic ft / hour	3,201	4,269	5,336	6,404
	cwt / hour	1,152	1,537	1,921	2,305
	bushels / hour	2,938	3,918	4,897	5,877
13 x 18	cubic ft / hour	3,673	4,898	6,121	7,346
	cwt / hour	1,322	1,763	2,204	2,645
	bushels / hour	3,842	5,123	6,404	7,685
17 x 18	cubic ft / hour	4,803	6,404	8,005	9,606
	cwt / hour	1,729	2,305	2,882	3,458
	bushels / hour	4,746	6,329	7,911	9,493
21 x 18	cubic ft / hour	5,933	7,911	9,889	11,866
	cwt / hour	2,136	2,848	3,560	4,272
	bushels / hour	5,425	7,233	9,041	10,850
24 x 18	cubic ft / hour	6,781	9,041	11,301	13,563
	cwt / hour	2,441	3,255	4,068	4,883
	bushels / hour	6,103	8,137	10,172	12,206
27 x 18	cubic ft / hour	7,629	10,171	12,715	15,258
	cwt / hour	2,746	3,662	4,577	5,493
	bushels / hour	7,836	10,448	13,060	15,672
24 x 26	cubic ft / hour	9,795	13,060	16,325	19,590
	cwt / hour	3,526	4,702	5,877	7,052
	bushels / hour	8,815	11,754	14,693	17,631
27 x 26	cubic ft / hour	11,019	14,693	18,366	22,039
	cwt / hour	3,967	5,289	6,612	7,934
	bushels / hour	9,795	13,060	16,325	19,550
30 x 26	cubic ft / hour	12,244	16,325	20,406	24,438
	cwt / hour	4,408	5,877	7,346	8,798
